AcquiDR

DRGEM →

Overview

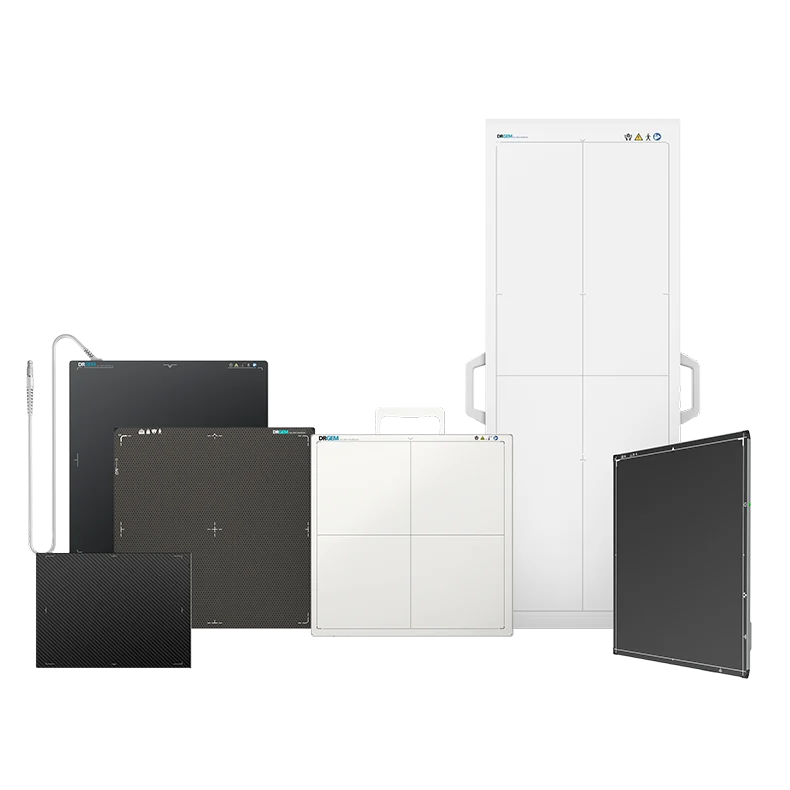

AcquiDR is DRGEM's digital imaging system for radiography equipment. It combines flat-panel detector options with an imaging workstation running RADMAX. DRGEM describes integration with its X-ray products and a digital upgrade path that can control the generator from the software instead of a membrane console.

Detector and image workflow

The official page presents a lightweight detector design with IP56 protection, event logging from a shock sensor and 100 µm pixel pitch. It separately describes a rugged IP68 detector design with a polycarbonate housing, inductive charging, hot-swappable batteries, shock sensing and a gyro. The page does not name these as one identical detector model, so ratings are not treated as a universal AcquiDR specification. RADMAX can embed exposure parameters such as kV and mAs in DICOM image headers.

Key features

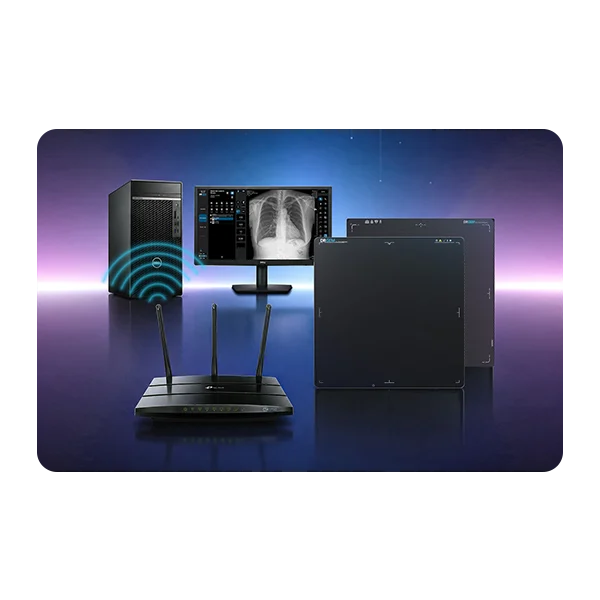

• Flat-panel detector and RADMAX workstation integration
• Lightweight detector design with shock-event logging
• Separate rugged detector design with inductive charging and battery hot swap
• Generator control from RADMAX
• DICOM images carrying kV and mAs exposure parameters
• Image tools including presets, grid-line suppression, bone suppression and scatter reduction

Applications / intended use

• Digital radiography system integration
• Digital upgrade of compatible X-ray equipment
