Overview

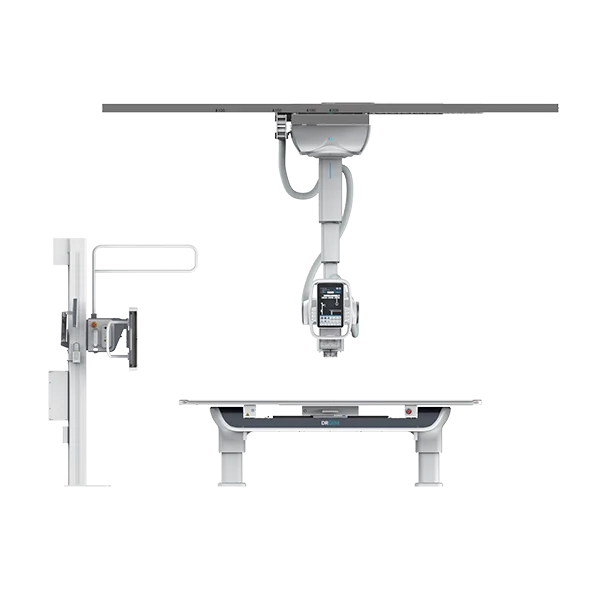

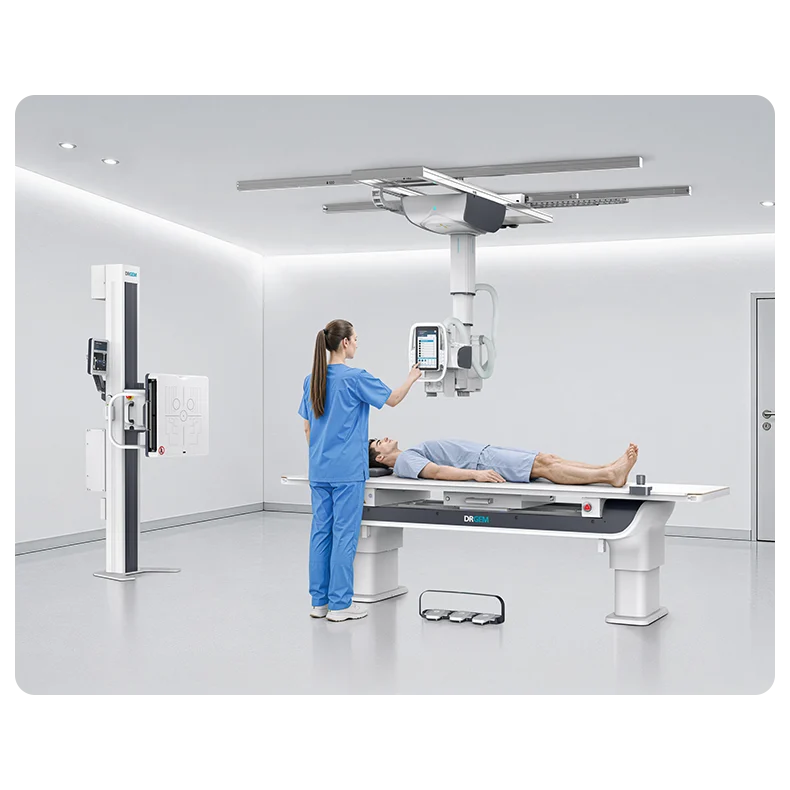

Auto Positioning System is DRGEM's separate premium digital X-ray product built on the GXR-SD platform. Motor-driven movement and tracking align the tube stand with the wall and table Buckys. Pre-programmed RADMAX procedures and image processing support repeatable general radiography workflows.

Positioning and controls

Operators can control positioning from the RADMAX workstation, a 15.6-inch tube-stand touch screen, remote controls, wall-stand panels or foot and hand switches. The wall stand supports one-touch positioning for chest and abdomen examinations, while automatic stitching combines views of longer anatomy at the wall stand or patient table. Collision sensors and emergency-stop switches provide movement safeguards. A 45° rotating Bucky is available with specified Deluxe wall-stand or table configurations.

Key features

• Motor-driven movements and automated tracking across the tube stand, wall Bucky and table Bucky
• Auto stitching at the wall stand and patient table
• RADMAX workstation, tube-stand touch screen, remote and foot-switch control options
• Collision sensors and emergency-stop switches
• Remote precision control of tube position, angle and wall-stand height
• Optional 45° rotating Bucky on WBS-TA Deluxe or PBT-6 Deluxe

Applications / intended use

• General diagnostic radiography
• Chest and abdominal examinations at the manufacturer-listed wall-stand SID settings
• Full-spine and long-bone studies using automatic stitching
