GXR-ES/ECS Series
Compact digital X-ray series for fixed rooms with the generator integrated beneath the table.
Overview

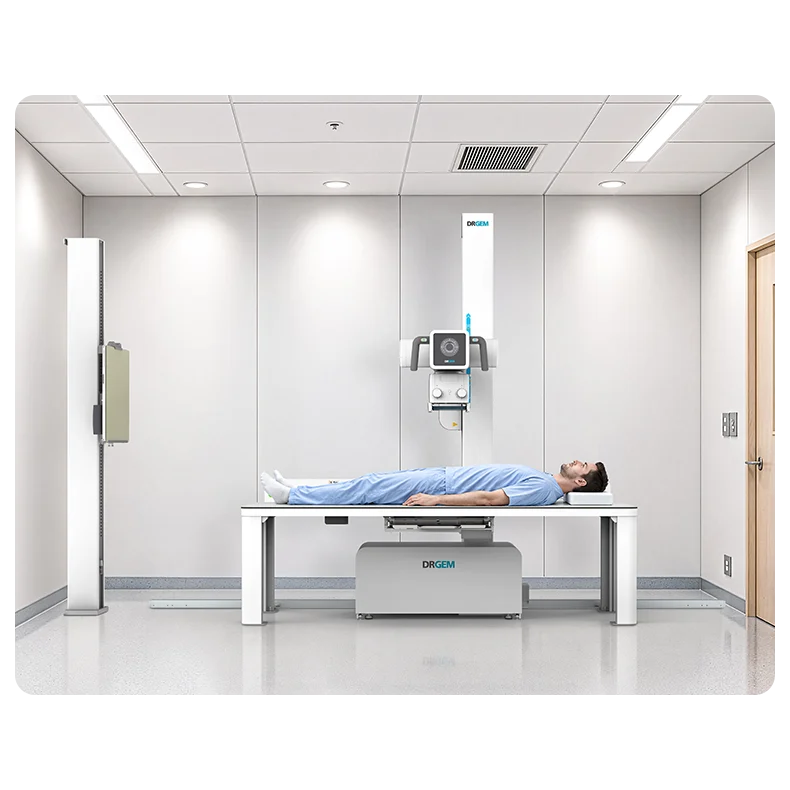

GXR-ES/ECS Series is DRGEM's compact X-ray system for sites with limited room area. Its generator sits under the patient table, and the manufacturer states a minimum floor area of 2.7 m × 1.8 m. Capacitor-powered generator configurations provide output up to 50 kW. The series supports standing, supine and angled views, with transverse tube movement for wider orthopedic coverage.
Room components
Table Bucky auto tracking keeps the tube aligned with movement of the table Bucky and can be released for angled examinations. DRGEM lists TS-FT4 and TS-FT6 tube stands, several wall-support options, a removable grid, and laminate or acrylic patient tables with different heights. These are component choices within the series, not separate products.
Key features
- Under-table integrated generator
- Table Bucky auto tracking with release for oblique views
- Capacitor-powered output up to 50 kW
- Standing, supine and angled positioning
- Transverse tube travel for orthopedic coverage
- Removable grid and multiple wall-stand, tube-stand and table options
Applications / intended use
- General diagnostic radiography in smaller fixed rooms
- Standing, supine and angled examinations
- Orthopedic views requiring wider tube coverage
Product images
