Planmed Verity®

Planmed →

Overview

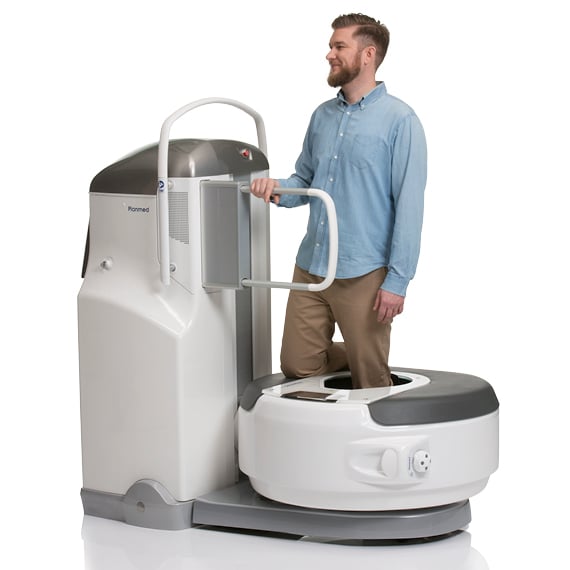

Planmed Verity is an extremity cone-beam computed tomography system designed for three-dimensional imaging of the limbs. Planmed presents it as a compact point-of-care system for orthopedic imaging.

Positioning and workflow

The motorized gantry can be adjusted in height and tilt. The manufacturer describes weight-bearing examinations of the knee, ankle, foot and toes, as well as non-weight-bearing positioning. Acquisition, reconstruction, touchscreen control and study management are integrated into the system workflow.

Imaging capability

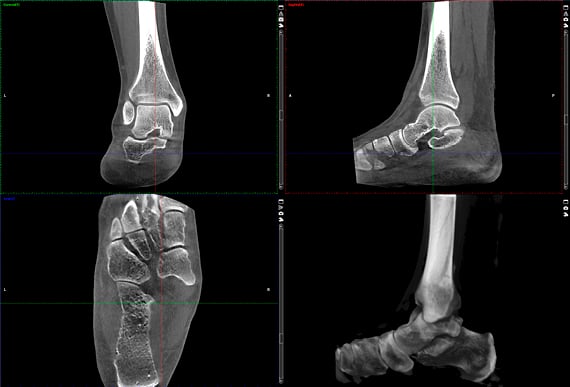

The current English Verity brochure specifies a multi-field of view up to 16 × 20 cm and voxel sizes of 200–400 μm. Planmed also lists Planmeca Ultra Low Dose technology among the imaging capabilities.

Key features

• Cone-beam CT system focused on extremity imaging
• Motorized gantry height and tilt adjustment
• Weight-bearing and non-weight-bearing positioning described by Planmed
• Integrated touchscreen acquisition, reconstruction and study management
• Multi-field of view up to 16 × 20 cm
• Voxel size range 200–400 μm in the current English brochure
• Planmed lists Planmeca Ultra Low Dose technology

Applications / intended use

• Three-dimensional orthopedic imaging of the knee, ankle, foot and toes
• Weight-bearing extremity examinations under natural load
• Non-weight-bearing extremity examinations
