VXR-E/EC Series
Compact veterinary X-ray series with integrated table, digital imaging and E/EC generator choices.
Overview

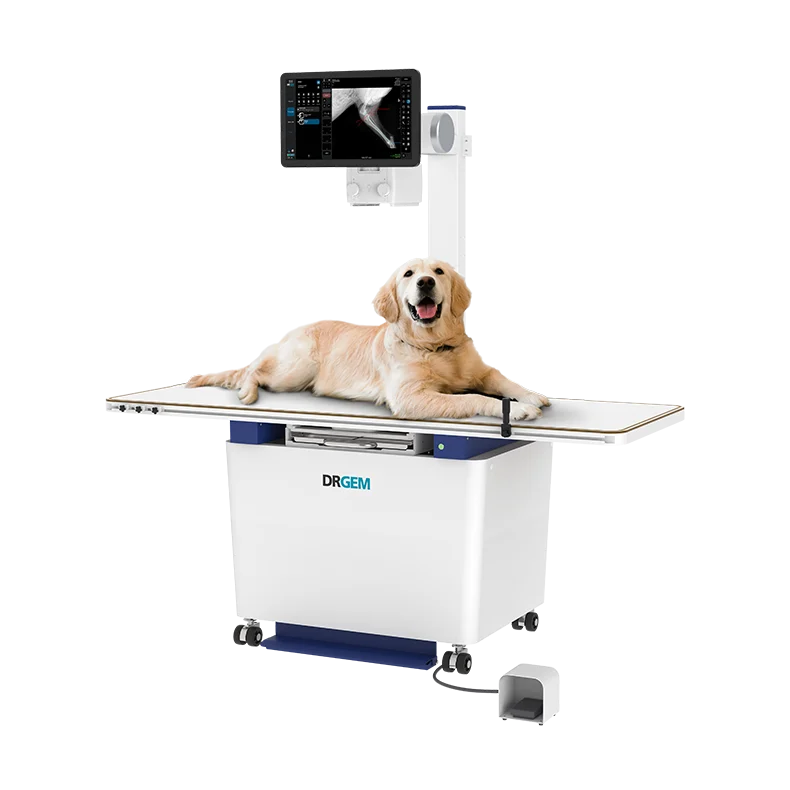

VXR-E/EC Series is DRGEM's veterinary radiography system with its generator integrated beneath the patient table. The official page presents VXR-E and VXR-EC as variants of one series, with generator output from 20 to 40 kW and tube current from 250 to 500 mA. The capacitor-powered generator is specifically identified with VXR-EC.
Veterinary workflow

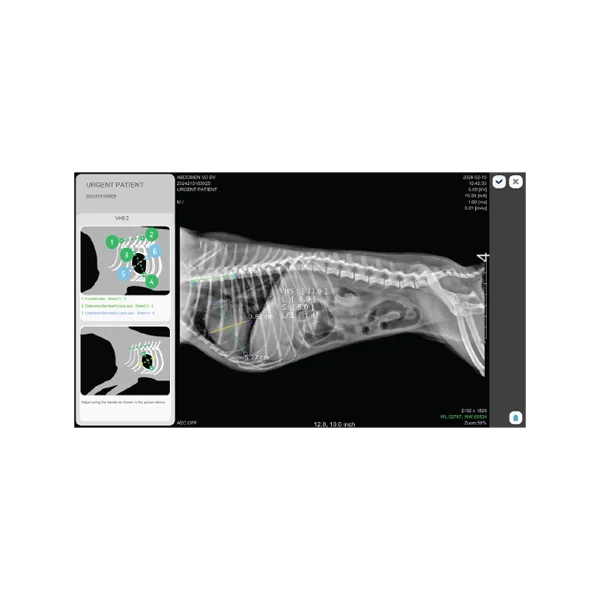

A four-way floating tabletop supports animal positioning. The integrated AcquiDR digital workflow includes DICOM 3.0 compatibility, graphical positioning guidance and measurement tools such as Vertebral Heart Scale and Tibial Plateau Angle. DRGEM lists optional tabletop sizes, a removable grid, monitor arms, an exposure foot-switch cover and casters.
Key features
- Generator integrated with the patient table
- Four-way floating tabletop
- Capacitor-powered generator on VXR-EC only
- AcquiDR digital imaging with DICOM 3.0
- Animal Positioning Guide
- Vertebral Heart Scale and Tibial Plateau Angle measurement tools
Applications / intended use
- General veterinary radiography
- Veterinary cardiac assessment using VHS
- Veterinary orthopedic assessment using TPLO
Product images
